Liquid Rubber Waterproofing Systems
Engineered liquid rubber waterproofing systems for below-ground structures, commercial roof refurbishment, gutter lining, complex detailing and large-scale spray application. Delivered through trained approved applicators with manufacturer-backed warranties and technical support.
Liquid Rubber Commercial Waterproofing Ecosystem
Three specialist waterproofing systems: SprayGrade (large-scale commercial spray output), HBS200 (universal detail membrane), BelowGrade (buried infrastructure waterproofing). Coordinated system family for commercial refurbishment.

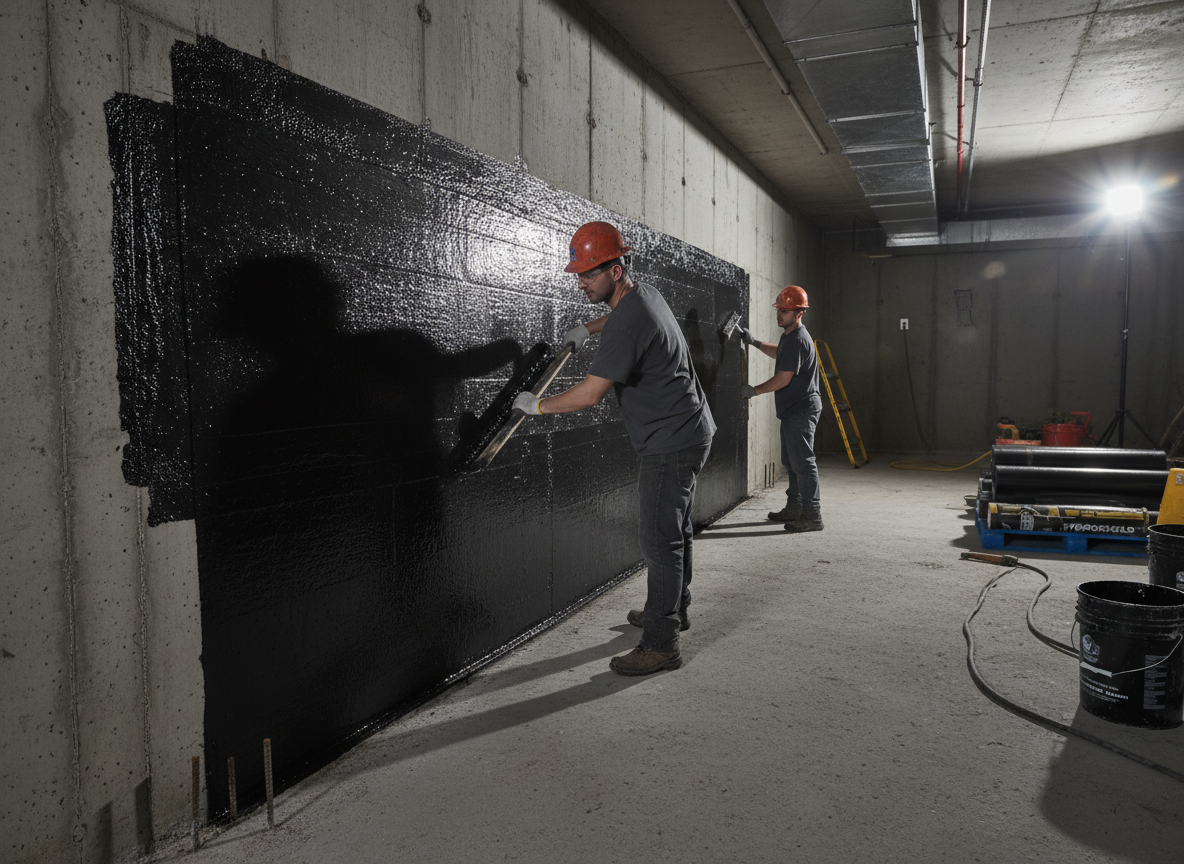

BelowGrade
Buried Waterproofing & Infrastructure Membrane
Two-component spray-applied liquid waterproofing membrane for buried structures and infrastructure. Seamless, fully-adhered protection for basements, foundations, retaining walls, bridge decks and tunnels. VOC-free, cold-applied system for high-consequence waterproofing environments.

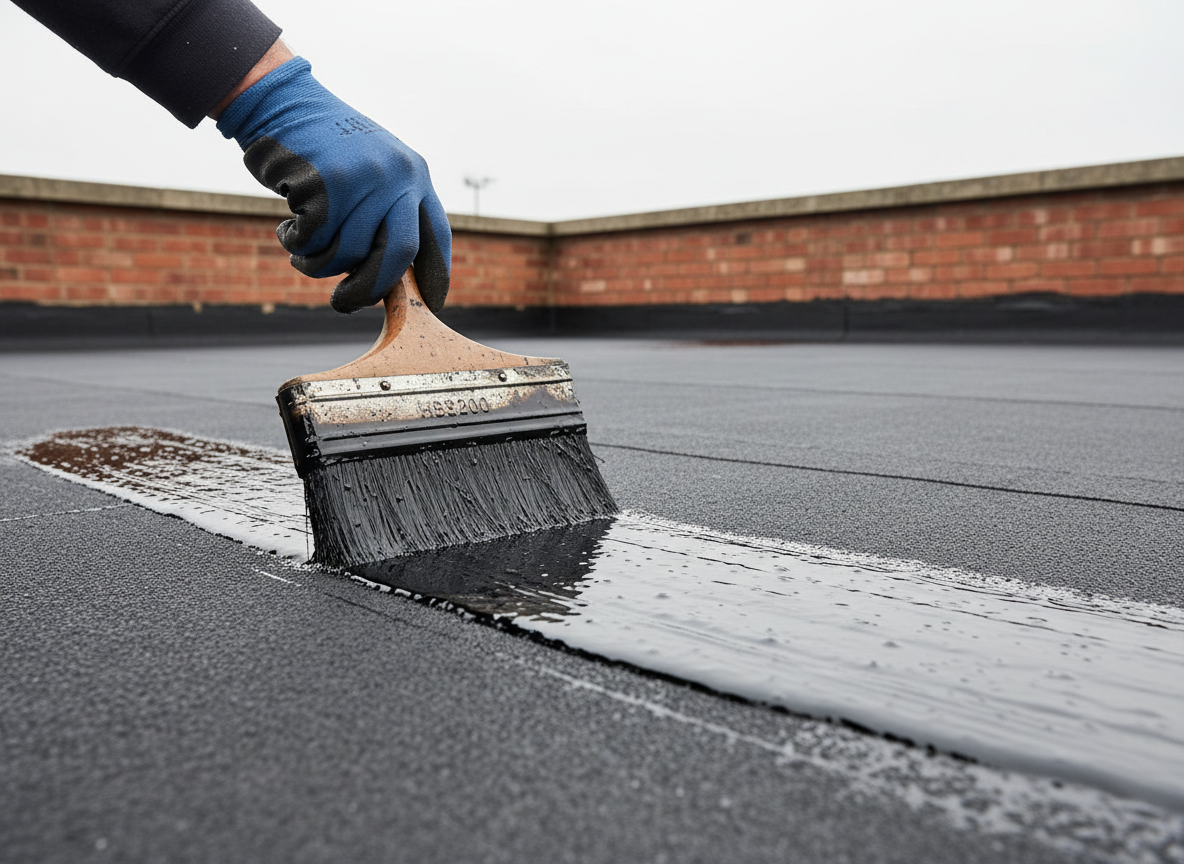

HBS200
Universal Detail Waterproofing Membrane
Single-component liquid waterproofing membrane for complex geometry, gutters, penetrations and refurbishment. Applied by brush, roller, trowel or airless spray to create a seamless fully-bonded waterproof barrier. Hand application provides precision control where spray cannot reach. Any warranty position is project-specific and depends on the substrate, preparation, complete system build-up, application records and manufacturer acceptance.

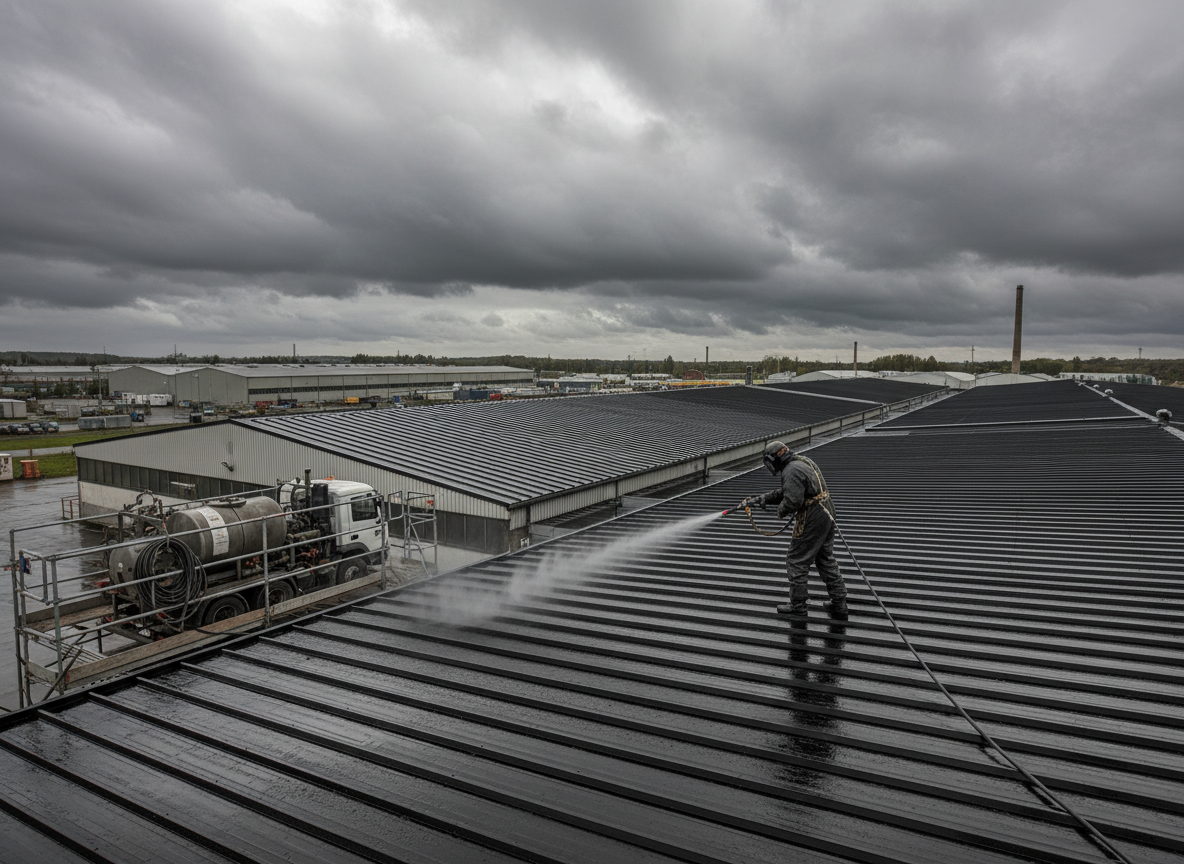

SprayGrade
Large-Scale Commercial Spray Waterproofing
Two-component cold-applied spray waterproofing membrane for large commercial roofs. Applied at approximately 2.7 kg/m² to form a seamless fully-bonded waterproof barrier. High output capacity for large commercial and industrial programmes. Any warranty position is project-specific and depends on the substrate, preparation, complete system build-up, application records and manufacturer acceptance.
Liquid Rubber vs Prokol — Operational Intent
Two distinct system families. Different chemistry. Different performance goals. Different project contexts. Understanding which applies to your project eliminates specification error.
Liquid Rubber
Seamless Waterproofing
Cold-applied elastomeric membrane
Typical Applications
- •Below-ground waterproofing (BS8102 compliance)
- •Flat roof membrane systems
- •Roof gutter refurbishment
- •Spray-applied large-area roofing
- •Maintenance detailing
Choose This When:
- ✓Substrate must be stable and dry
- ✓Below 500m²: hand-apply HBS200
- ✓Above 500m²: spray SprayGrade
- ✓No heat, flames or specialist hot-work needed
- ✓Seamless coverage critical
Not Suitable For:
- ✗Traffic-rated surfaces (use Rocathaan HotSpray)
- ✗High UV exposure requiring 35-year warranty (use TopSpray35)
- ✗Wet or saturated substrates (require remediation first)
Product Range:
Prokol
Long-Life Protective Coatings
Polyurea, elastomeric, reactive systems
Typical Applications
- •Spray roof protection (up to 35 years)
- •Commercial roof coatings
- •Fire-rated protective layers
- •Car park and traffic-rated decks
- •Industrial protective coatings
Choose This When:
- ✓Long-life UV protection required
- ✓Traffic-rated surfaces (Rocathaan polyurea)
- ✓Fire safety compliance needed
- ✓Elastomeric elongation critical
- ✓Substrate protection primary function
Not Suitable For:
- ✗Below-ground waterproofing (use BelowGrade)
- ✗Below 500m² hand detailing (use HBS200)
- ✗Where seamless waterproof membrane is primary (use SprayGrade)
Product Range:
Need Help Selecting?
Submit your project details — substrate type, area, operational requirements, timeline — and our specification team will recommend the appropriate system pathway.
Liquid Rubber Systems Applicator Training — Blackburn, UK
Hands-On Product Training
Forti Nova hosts comprehensive Liquid Rubber Systems application training at our Blackburn facility. Practical, hands-on instruction covering substrate preparation, mixing ratios, application techniques, detailing, and quality control. Designed for contractors and applicators seeking specification-grade installation capability.
- Substrate assessment and preparation protocols
- System-specific mixing and application
- Detailing for complex geometries
- Quality control and inspection procedures
- Environmental constraints and cure management
Approved Applicator Network
Forti Nova maintains a network of trained Liquid Rubber Systems applicators across the UK. Specifiers and main contractors can request approved applicators for project tender and execution. Training ensures consistent application quality, specification compliance, and warranty validation support.
For Contractors
Become a Forti Nova approved applicator. Training, technical support, and project referral network access.
For Specifiers
Request approved applicators for tender lists. Verified training, technical capability, and warranty compliance support.
Training & Specification Support
Use the contact wizard to request training, join the applicator network, or specify Liquid Rubber Systems for your project.
System Selection Guide
Each Liquid Rubber system serves a distinct commercial role: SprayGrade for large-scale output, HBS200 for detail precision, BelowGrade for buried infrastructure. Select by application type and project requirements.
Open System SelectorTwo-component spray membrane for basements, foundations, retaining walls, bridge decks and tunnels. Assessed with reference to BS 8102 and the project-specific design requirements.
Universal detail waterproofing membrane. Hand-applied precision for penetrations, edges, gutters and refurbishment.
Commercial cold-spray waterproofing. Seamless fully-bonded membrane for overlay refurbishment on large commercial and industrial roofs. Application output depends on equipment, access, substrate condition and project controls.
Project Review Disclaimer
All system recommendations are subject to project assessment and substrate suitability review. Technical information provided is for guidance only. Warranties are subject to application by trained approved applicators and full compliance with manufacturer specification. Not all systems are suitable for all applications — please request a project assessment before proceeding.
Liquid Rubber System Questions
Ready to specify a Liquid Rubber system?
Submit your project for assessment and our technical team will advise on the right system pathway.
